When fixing things around your house, picking the right tape is super important. In this guide, we’ll look at electrical tape versus duct tape – two sticky helpers you can find in most home tool boxes.
You might wonder when to use the colorful electrical tape or the strong gray duct tape. In this article, I’ll show you what each tape is good for, when to use them, and what they can’t do. By learning about these two tapes, you’ll know exactly which one to grab for your next project, making your repairs safer and better!

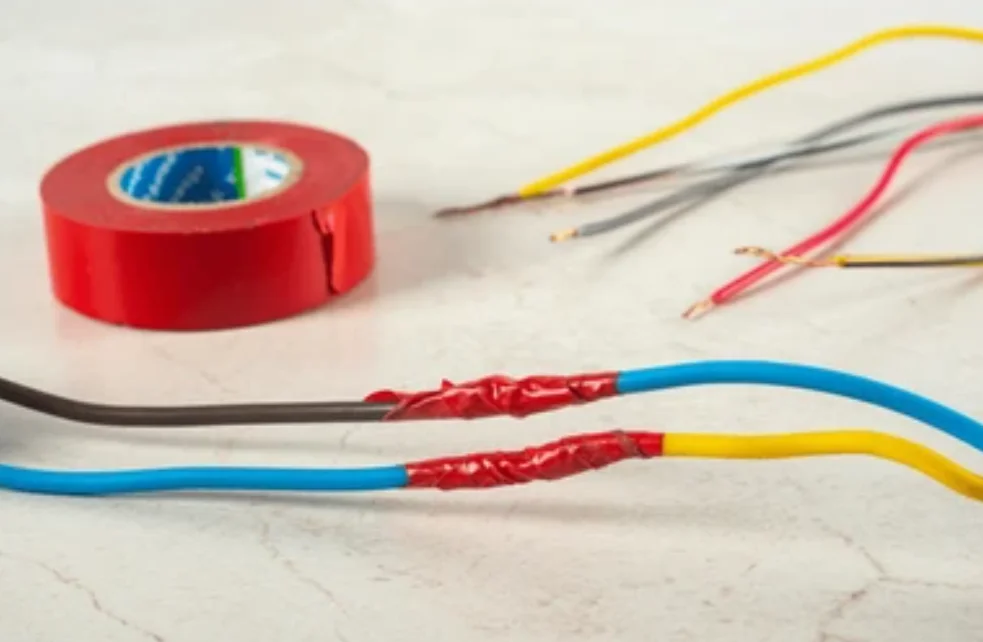

What is Electrical Tape?
Electrical tape is an adhesive product used to protect and insulate wires and cables that carry electricity. Typically made from PVC, rubber, vinyl, or cloth, this generic term covers various forms of tapes designed specifically for electrical wiring and phasing work.
History and Original Purpose
Electrical tape was first created in the 1940s specifically to help electricians work safely with wires. Before electrical tape, workers used fabric tapes soaked in wax or rubber, which weren’t very reliable. During World War II, the need for better insulation led to the development of vinyl electrical tape as we know it today. The goal was simple: create a flexible material that could prevent electricity from flowing where it shouldn’t and protect people from shocks.
Is Electrical Tape Heat Resistant?
Any legitimate electrical tape must possess heat resistance and nonflammable qualities, regardless of its composition material. These specialized tapes are engineered to endure extreme temperatures – capable of withstanding up to 176 degrees Fahrenheit! I once tried using regular tape on a hot wire and learned the hard way why these special properties matter!

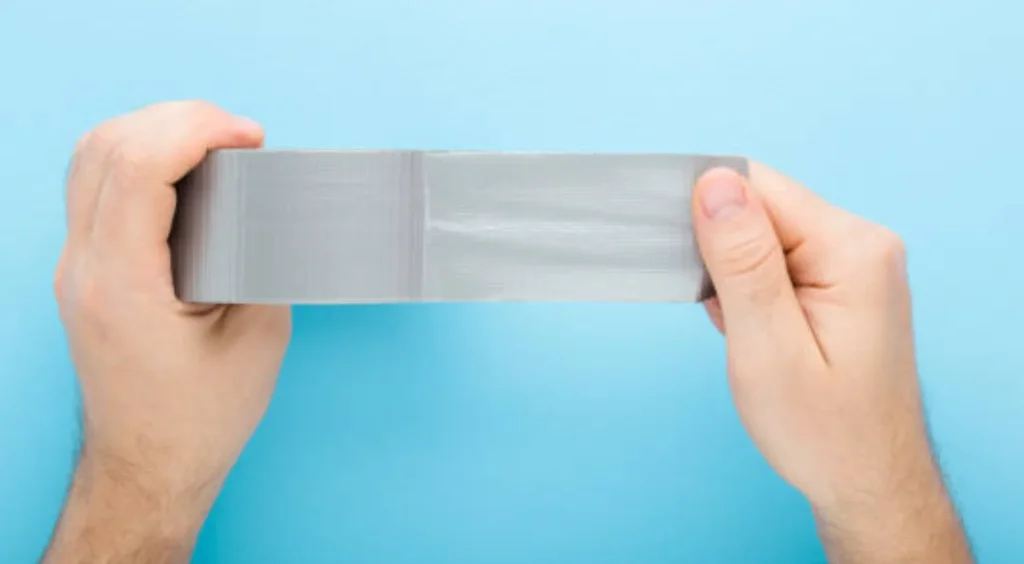

What is Duct Tape?
Duct tape is a versatile adhesive tape made of three layers – a top layer of polythene, a middle layer of fabric, and a bottom layer of rubber-based glue. This cloth-backed tape is both flexible enough to stick to uneven surfaces while the fabric layer gives it incredible strength, yet still allows it to be easily torn by hand.
History and Original Purpose
During World War II, around 1942, the U.S. military required a durable, waterproof tape to seal ammunition boxes and prevent moisture damage—this need led to the invention of duct tape. Johnson & Johnson developed this tape using a cloth backing coated with polyethylene and a rubber-based adhesive. Soldiers quickly discovered its versatility and nicknamed it “duck tape” for two possible reasons: it was waterproof like a duck’s feathers, and it was made from a cotton duck cloth backing.
After the war, the housing boom created a new use for this versatile tape – sealing heating and air conditioning ducts. The color changed from military olive to silver (to match the metal ducts), and the name gradually shifted from “duck tape” to “duct tape.” Ironically, modern building codes no longer permit duct tape for actually sealing ducts because it doesn’t hold up well to the temperature changes and can create fire hazards.
Can I Use Duct Tape for Electrical Work?
Duct tape might seem like a fix-all, but it’s not safe for electrical wires. Though duct tape is strong, it can’t wrap tightly around wires like electrical tape can. The cloth fibers in duct tape can catch fire easily, making it an extreme fire hazard. I once tried using it on wires in my home and nearly caused a fire! Electrical tape is made specifically for safely covering materials that carry electricity. After my scary moment, I always keep real electrical tape for insulating any wires that conduct power.
Can Duct Tape Withstand Temperature Extremes?
Duct tape is heat resistant and safe for use in moderate temperatures, up to 200 degrees Fahrenheit. However, the adhesive won’t hold well on extremely hot surfaces – I learned this the hard way when using it in my garage during summer!
The tape will soften and melt because of its fabric and rubber material makeup. In cold environments, the adhesive begins to harden, destroying its sticking power. From my experience, it’s not recommended for freezing temperatures as it simply stops working when things get too cold.
Comparison Between Electrical vs Duct Tape
Adhesive Differences
Temperature Tolerance
- Electrical Tape: Typically withstands temperatures from -18°C to 105°C (0°F to 220°F). Premium grades can handle up to 130°C (266°F).
- Duct Tape: Generally effective between -4°C to 60°C (25°F to 140°F). Performance significantly decreases at extreme temperatures, becoming brittle in cold and gummy in heat.
Moisture Resistance
- Electrical Tape: Designed to resist heavy moisture, it forms a secure seal that effectively blocks water from seeping through. Designed to protect electrical connections from moisture for years.
- Duct Tape: Initially water-resistant but not truly waterproof for extended periods. The adhesive breaks down when continuously exposed to moisture, typically failing after several weeks of outdoor exposure.
Longevity
- Electrical Tape: When properly applied, can last 5-10 years indoors. Even in harsh conditions, quality electrical tape maintains its properties for at least 3-5 years.
- Duct Tape: Indoor lifespan of 1-2 years under ideal conditions. Outdoors, most duct tapes begin to degrade within 3-6 months, with adhesive failure and backing separation.
Backing Material Differences
Flexibility and Stretching Capability
- Electrical Tape: Extremely flexible with 150-200% elongation before breaking. This stretchability allows it to conform tightly around irregular shapes and create a compression fit.
- Duct Tape: Limited stretch (typically only 10-15%) with minimal recovery. Relies on its fabric backing for strength rather than elasticity.
Durability Under Various Conditions
- Electrical Tape: Excellent resistance to oils, acids, and corrosive chemicals. Maintains integrity when exposed to UV light, especially black varieties.
- Duct Tape: Poor chemical resistance with most solvents causing adhesive breakdown. Standard varieties degrade quickly under UV exposure, though specialty outdoor versions offer improved performance.
Thickness and Strength
- Electrical Tape: Typically 7-10 mils thick (0.007-0.01 inches). Despite being thinner, its stretchy nature creates a stronger bond over time.
- Duct Tape: Usually 7-12 mils thick (0.007-0.012 inches). The fabric reinforcement allows immediate tensile strength of approximately 50 pounds per inch width.
Insulation Properties
Electrical Conductivity/Resistance
- Electrical Tape: Provides 600-10,000 volts of dielectric protection, depending on quality and thickness. Certified non-conductive and designed specifically to prevent electrical current flow.
- Duct Tape: Offers minimal electrical insulation (usually less than 100 volts). The fabric mesh may contain metal threads or conductive materials, creating potential hazards in electrical applications.
Thermal Properties
- Electrical Tape: Low thermal conductivity, helping to contain heat. Self-extinguishing and won’t propagate flames.
- Duct Tape: Moderate thermal conductivity. Can smolder and propagate flames when exposed to heat sources, making it dangerous for hot applications.
Weather Resistance
- Electrical Tape: Maintains flexibility and adhesion through temperature cycles, humidity changes, and moderate UV exposure.
Duct Tape: Performance deteriorates rapidly in weather cycles. Adhesive becomes brittle and fails during temperature fluctuations, while backing can crack or separate when repeatedly exposed to elements.
| Property | Electrical Tape | Duct Tape |
|---|
| Adhesive Differences | Designed for long-term adhesion in electrical environments. | Strong initial tack, but degrades faster under stress and exposure. |
| Temperature Tolerance | -18°C to 105°C (0°F to 220°F), up to 130°C (266°F) for premium types. | -4°C to 60°C (25°F to 140°F); brittle in cold, gummy in heat. |
| Moisture Resistance | Highly moisture-resistant; seals tightly against water. | Initially water-resistant; fails after weeks in moist conditions. |
| Longevity | 5–10 years indoors; 3–5 years in harsh conditions. | 1–2 years indoors; degrades outdoors in 3–6 months. |
| Flexibility & Stretching | 150–200% elongation; conforms to irregular shapes. | 10–15% stretch; limited flexibility, relies on fabric strength. |
| Chemical Resistance | Resistant to oils, acids, and corrosives; UV-resistant (esp. black tape). | Poor resistance to solvents and UV; degrades quickly unless specialty grade. |
| Thickness | 7–10 mils (0.007–0.01 in). | 7–12 mils (0.007–0.012 in). |
| Tensile Strength | Lower immediate tensile strength; gains strength with stretch and compression. | ~50 lbs per inch width due to fabric reinforcement. |
| Electrical Insulation | 600–10,000 volts dielectric protection; non-conductive. | Minimal (<100 volts); may be conductive due to metal threads in mesh. |
| Thermal Conductivity | Low; self-extinguishing and flame-resistant. | Moderate; can smolder or propagate flames. |
| Weather Resistance | Good performance through temperature and humidity cycles; resists UV. | Poor outdoor durability; adhesive and backing degrade in weather. |
Is Duct Tape or Electrical Tape More Waterproof?
Electrical tape is generally more waterproof than duct tape.
Electrical tape is specifically designed to be waterproof and provide insulation in electrical applications. It’s made with PVC backing and a rubber-based adhesive that creates a tight seal that resists water. When properly applied (stretched slightly as it’s wrapped), electrical tape forms a water-resistant barrier that maintains its integrity when wet.
Duct tape, while versatile and strong, isn’t truly waterproof. It has a cloth backing that can absorb water over time. The adhesive on duct tape also tends to break down when exposed to moisture for extended periods. While duct tape might repel water initially, it usually fails in prolonged wet conditions.
For applications requiring true water resistance, electrical tape is the better choice. However, if you need something with better structural strength that can handle short-term water exposure, duct tape might work better.
Can duct tape be safely used in place of electrical tape?
No, duct tape should not be used as an alternative to electrical tape for electrical applications.
While duct tape is versatile for many repairs, it’s unsafe for electrical work for several important reasons:
- Not electrically insulating – Duct tape isn’t designed to prevent electrical current flow and can pose shock hazards.
- Conductive materials – Some duct tapes contain aluminum or other conductive materials that could cause short circuits.
- Flammability risk – Duct tape isn’t flame-retardant and could catch fire from electrical heat.
- Degradation over time – Duct tape adhesive breaks down, especially with heat, potentially exposing wires.
- No UL certification – Electrical tape is UL-listed for safety in electrical applications; duct tape isn’t.
Electrical tape is specifically engineered with properties that make it safe for electrical work – it’s properly insulating, flame-retardant, designed to withstand temperature changes, and maintains its integrity over time.
If you need to work with electrical connections, it’s always best to use the proper materials designed for electrical safety. Electrical tape is relatively inexpensive and widely available at hardware stores.
Conclusion
Electrical tape and duct tape both help fix things, but they work best for different jobs. Electrical tape keeps you safe around wires and can handle heat. Duct tape sticks to many surfaces and works great for quick fixes. Knowing which tape to use makes your repairs better and safer. Always keep both types in your home toolkit. The right tape makes fixing things easier and helps your repairs last longer. Remember to pick the right tape for each job!
